Execute fetchXML with WebAPI in Dynamics 365 using JavaScript

Dynamics 365 Header

In Dynamics 365 WebAPI we can retrieve data using OData queries, but if there is some complex requirement it’s better to query using fetchXML, and good news is Dynamics 365 WebAPI supports querying using fetchXML. With fetchXML we have 2 main advantage, it can be easily generated using Advanced Find & It’s more readable. You can even use Joins & Aggregate function in fetchXML queries which are not possible using Advanced Find(refer http://msxrmtools.com/fetchxml/reference). Let’s see how can we query fetchXML with WebAPI.

Generate fetchXML using Advanced Find

Click on funnel icon to open Advanced Find window.

Filter-Button

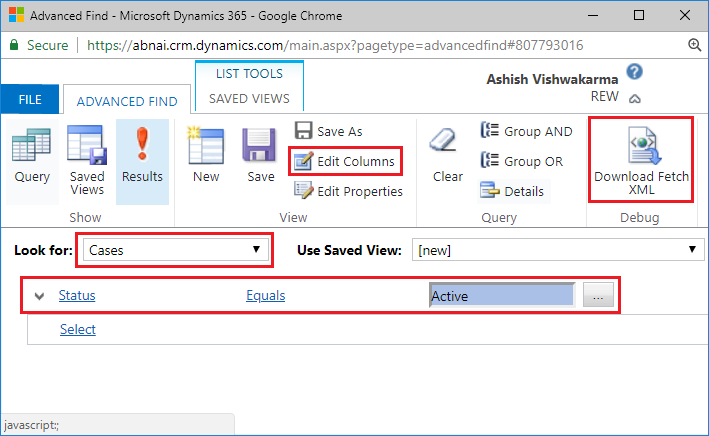

I have created a simple fetchXML query to retrieve all the active cases with few columns.

Advanced-Find

Click on “Download Fetch XML” button to get the below fetchXML query.

<fetch version="1.0" output-format="xml-platform" mapping="logical" distinct="false">
  <entity name="incident">
    <attribute name="title" />
    <attribute name="ticketnumber" />
    <attribute name="createdon" />
    <attribute name="incidentid" />
    <attribute name="caseorigincode" />
    <order attribute="title" descending="false" />
    <filter type="and">
      <condition attribute="statecode" operator="eq" value="0" />
    </filter>
  </entity>
</fetch>

Executing fetchXML with GET method

To execute fetchXML you need to simply append entity’s plural name in WebAPI endpoint and pass fetchXml in query string, and make http/ajax request

Syntax: WebAPI Endpoint + / + Entity Plural Name + ?fetchXml= + Your fetchXml here

Example:

 https://AshV.crm.dynamics.com/api/data/v9.0/incidents?fetchXml=<fetch version="1.0" output-format="xml-platform" mapping="logical" distinct="false"><entity name="incident"><attribute name="title" /><attribute name="ticketnumber" />    <attribute name="createdon" /><attribute name="incidentid" /><attribute name="caseorigincode" /><order attribute="title" descending="false" /><filter type="and"><condition attribute="statecode" operator="eq" value="0" /></filter></entity></fetch>

Response of this request would be similar to one give below. As this is simple GET call, you can even execute this in browser and test, you can check out one of my tool FetchXmlTester, which let’s you test your fetchXML without sharing your credentials. While running in browser we can’t set header Prefer: odata.include-annotations=”*“ to see formatted value.

{
   "@odata.context":"https://abnai.crm.dynamics.com/api/data/v9.0/$metadata#incidents(title,ticketnumber,createdon,incidentid,caseorigincode)",
   "value":[
      {
         "@odata.etag":"W/\"1095635\"",
         "title":"Average order shipment time",
         "ticketnumber":"CAS-01213-P8B3X0",
         "createdon":"2017-01-20T22:50:45Z",
         "incidentid":"b69e62a8-90df-e311-9565-a45d36fc5fe8",
         "caseorigincode":3
      },
      {
         "@odata.etag":"W/\"1092817\"",
         "title":"Shipping time information resend",
         "ticketnumber":"CAS-01261-N0C8H9",
         "createdon":"2017-01-20T22:51:13Z",
         "incidentid":"169f62a8-90df-e311-9565-a45d36fc5fe8",
         "caseorigincode":2
      }
   ]
}

Making GET request with XMLHttpRequest

var fetchXmlQuery = `
<fetch version="1.0" output-format="xml-platform" mapping="logical" distinct="false">
  <entity name="incident">
    <attribute name="title" />
    <attribute name="ticketnumber" />
    <attribute name="createdon" />
    <attribute name="incidentid" />
    <attribute name="caseorigincode" />
    <order attribute="title" descending="false" />
    <filter type="and">
      <condition attribute="statecode" operator="eq" value="0" />
    </filter>
  </entity>
</fetch>`;

var req = new XMLHttpRequest();
req.open(
  "GET",
  Xrm.Page.context.getClientUrl() +
    "/api/data/v9.0/incidents?fetchXml=" +
    encodeURIComponent(fetchXmlQuery),
  true
);
req.setRequestHeader("Prefer", 'odata.include-annotations="*"');
req.onreadystatechange = function() {
  if (this.readyState === 4) {
    req.onreadystatechange = null;
    if (this.status === 200) {
      var results = JSON.parse(this.response);
      console.dir(results);
    } else {
      alert(this.statusText);
    }
  }
};
req.send();

Making GET request with JavaScript Fetch API

var fetchXmlQuery = `
<fetch version="1.0" output-format="xml-platform" mapping="logical" distinct="false">
  <entity name="incident">
    <attribute name="title" />
    <attribute name="ticketnumber" />
    <attribute name="createdon" />
    <attribute name="incidentid" />
    <attribute name="caseorigincode" />
    <order attribute="title" descending="false" />
    <filter type="and">
      <condition attribute="statecode" operator="eq" value="0" />
    </filter>
  </entity>
</fetch>`;

fetch(
  Xrm.Page.context.getClientUrl() +
    "/api/data/v9.0/incidents?fetchXml=" +
    encodeURIComponent(fetchXmlQuery),
  {
    credentials: "same-origin",
    headers: {
      Prefer: 'odata.include-annotations="*"'
    }
  }
)
  .then(response => response.json())
  .then(result => console.dir(result))
  .catch(error => console.error("Error:", error));

Executing Large fetchXML using POST method with $batch

As I mentioned in starting we can choose to use fetchXML over OData query for complex queries which will be obviously bigger in size. But we have URL length limit, which is around 2000 characters roughly(varies in different browsers) so if our URL extends this, Bad Gateway exception is thrown.

$batch is solution for this. In Dynamics 365 webapi we can execute bigger GET request using $batch, we need to set header Content-Type: multipart/mixed;boundary=batch_fetchquery and content of GET request should go in body enclosed within value given in boundary, which is batch_fetchquery in our case. To learn more about $batch, you can refer https://docs.microsoft.com/en-us/dynamics365/customer-engagement/developer/webapi/execute-batch-operations-using-web-api.

Making POST request with XMLHttpRequest

var fetchXmlQuery = `
<fetch version="1.0" output-format="xml-platform" mapping="logical" distinct="false">
  <entity name="incident">
    <attribute name="title" />
    <attribute name="ticketnumber" />
    <attribute name="createdon" />
    <attribute name="incidentid" />
    <attribute name="caseorigincode" />
    <order attribute="title" descending="false" />
    <filter type="and">
      <condition attribute="statecode" operator="eq" value="0" />
    </filter>
  </entity>
</fetch>`;

var req = new XMLHttpRequest();
req.open(
  "POST",
  Xrm.Page.context.getClientUrl() + "/api/data/v9.0/$batch",
  true
);
req.setRequestHeader(
  "Content-Type",
  "multipart/mixed;boundary=batch_fetchquery"
);
req.onreadystatechange = function() {
  if (this.readyState === 4) {
    req.onreadystatechange = null;
    if (this.status === 200) {
      var result = JSON.parse(
        this.response.substring(
          this.response.indexOf("{"),
          this.response.lastIndexOf("}") + 1
        )
      );
      console.dir(result);
    } else {
      console.error(this.statusText);
    }
  }
};

var body =
  "--batch_fetchquery\n" +
  "Content-Type: application/http\n" +
  "Content-Transfer-Encoding: binary\n" +
  "\n" +
  "GET " +
  Xrm.Page.context.getClientUrl() +
  "/api/data/v9.0/incidents?fetchXml=" +
  encodeURIComponent(fetchXmlQuery) +
  " HTTP/1.1\n" +
  'Prefer: odata.include-annotations="*"\n' +
  "\n" +
  "--batch_fetchquery--";

req.send(body);

Making POST request with JavaScript Fetch API

var fetchXmlQuery = `
<fetch version="1.0" output-format="xml-platform" mapping="logical" distinct="false">
  <entity name="incident">
    <attribute name="title" />
    <attribute name="ticketnumber" />
    <attribute name="createdon" />
    <attribute name="incidentid" />
    <attribute name="caseorigincode" />
    <order attribute="title" descending="false" />
    <filter type="and">
      <condition attribute="statecode" operator="eq" value="0" />
    </filter>
  </entity>
</fetch>`;

fetch(Xrm.Page.context.getClientUrl() + "/api/data/v9.0/$batch", {
  body:
    "--batch_fetchquery\n" +
    "Content-Type: application/http\n" +
    "Content-Transfer-Encoding: binary\n" +
    "\n" +
    "GET " +
    Xrm.Page.context.getClientUrl() +
    "/api/data/v9.0/incidents?fetchXml=" +
    encodeURIComponent(fetchXmlQuery) +
    " HTTP/1.1\n" +
    'Prefer: odata.include-annotations="*"\n' +
    "\n" +
    "--batch_fetchquery--",
  headers: {
    "Content-Type": "multipart/mixed;boundary=batch_fetchquery"
  },
  credentials: "same-origin",
  method: "POST"
})
  .then(response => response.text())
  .then(data => {
    var result = JSON.parse(
      data.substring(data.indexOf("{"), data.lastIndexOf("}") + 1)
    );
    console.log(result);
  })
  .catch(error => console.error("Error:", error));

Testing the code in Dyanmics 365

To test the above code I made small tweaks to run it from HTML web resource as you can see below.

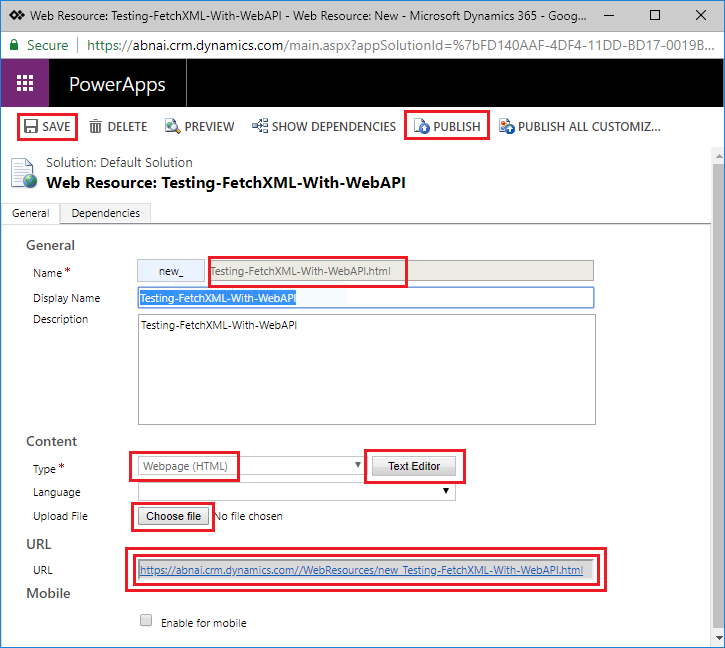

Create new HTML web resource with above code & publish it.

Test-Web-Resource

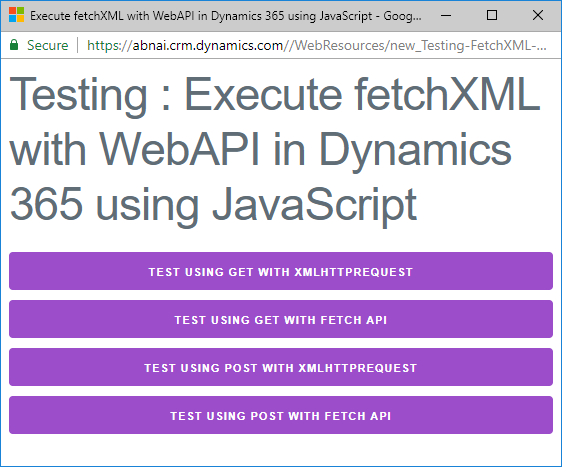

Click on the URL to open it, you will see below window.

Test-Window

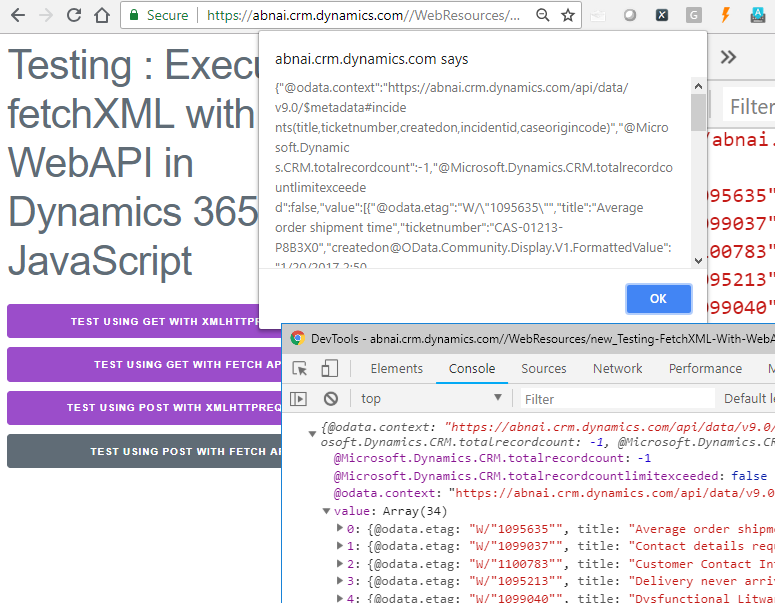

Press F12 to open console, click on buttons to verify the retrieved data in console & alert.

Testing

Thanks for reading, Hope it helps!
