Set Lookup View with JavaScript in Dynamics CRM/365

Assigning Case To Appropriate Team User Using Plugin In Dynamics 365/ CRM

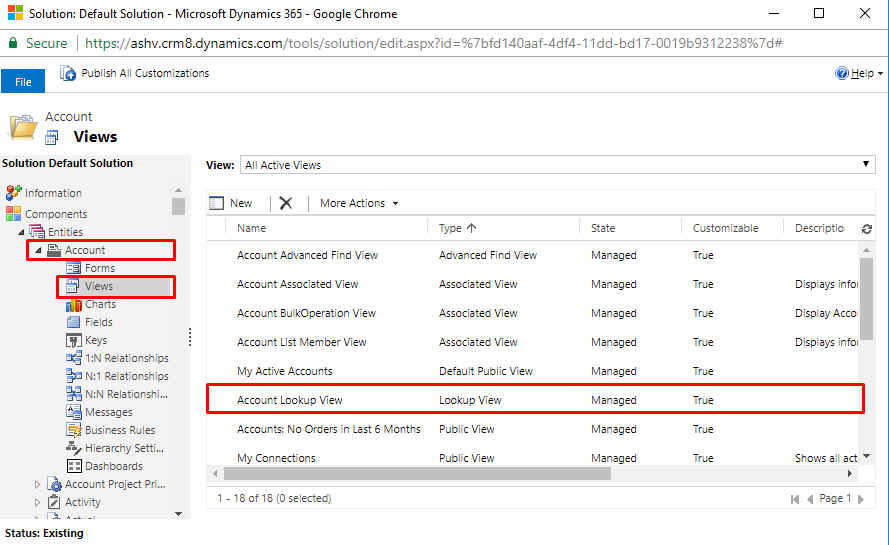

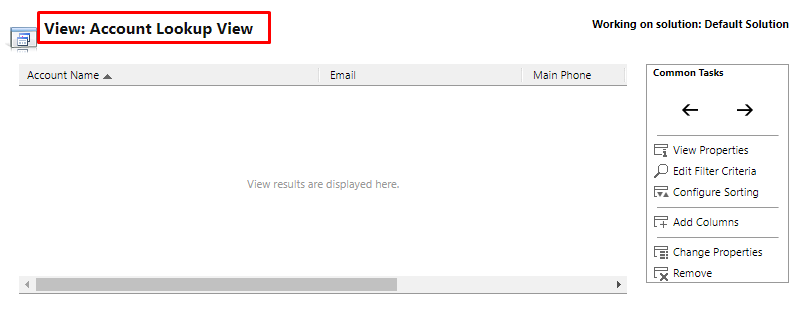

Lookup Views are shown when user clicks on Look Up More Records in any Lookup Field. In Dynamics CRM/365, Lookup Views are available in almost all entities, In newly created custom entities also it will be available by default. Lookup View of Account Entity is shown.

image alt text

image alt text

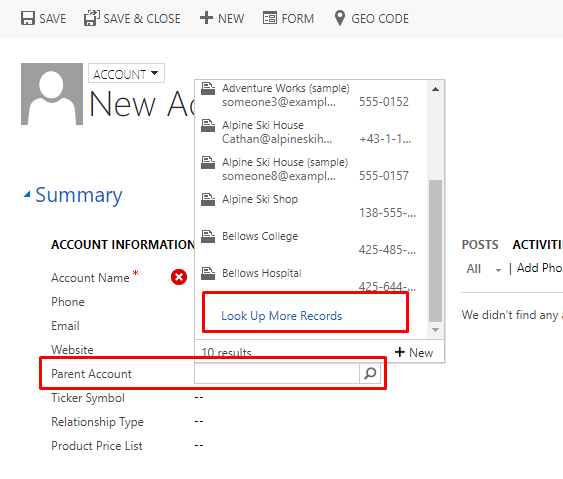

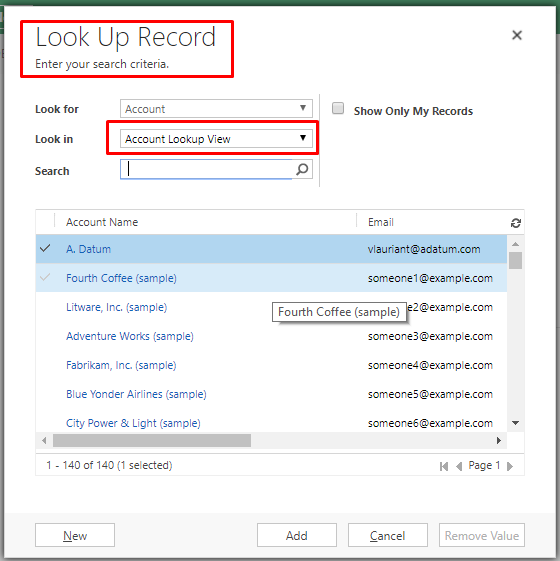

Parent Account field is a Lookup in Account, you can see Lookup View here

image alt text

image alt text

Now If we want to show some other view here by default, setDeafautView() method does our job. See the syntax below.

Xrm.Page.getControl("<ControlName>").setDefaultView("<ViewGUID>");

Now the question is how to get View Id, well Advanced Find is here to rescue.

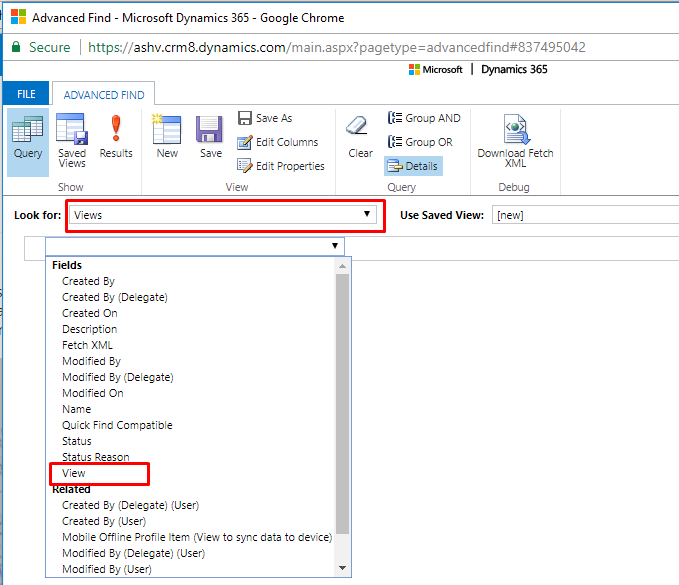

Select Look for as View and condition as Equals.

image alt text

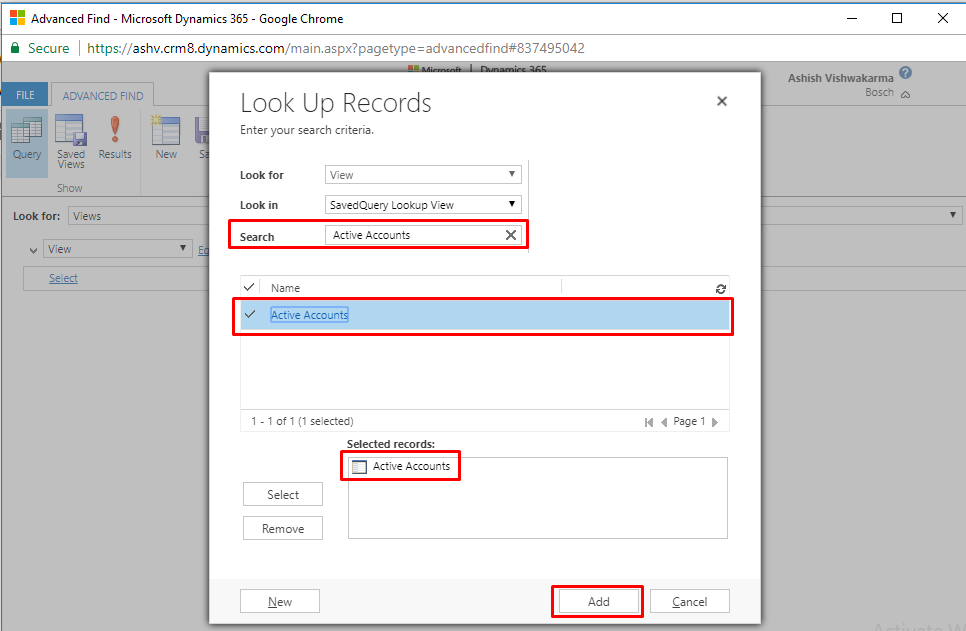

Select your desired View from Lookup. It must belong to your Entity otherwise it won’t show any error but won’t work also, I am taking Active Accounts view Here.

image alt text

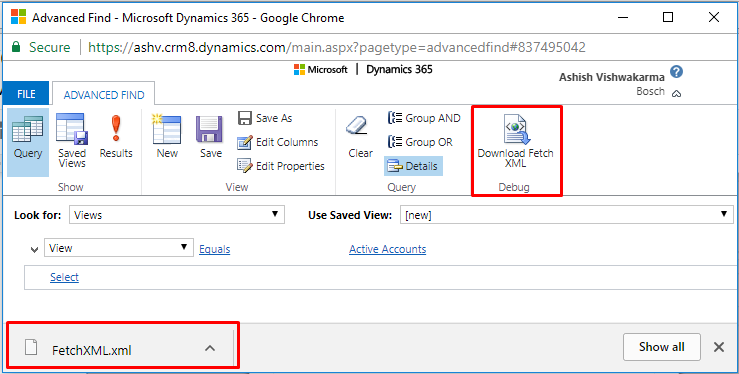

Download and Open Fetch XML

image alt text

You can find View ID here. Which is {00000000-0000-0000-00AA-000010001002} for me.

<fetch version="1.0" output-format="xml-platform" mapping="logical" distinct="false">
  <entity name="savedquery">
    <attribute name="name" />
    <attribute name="description" />
    <attribute name="savedqueryid" />
    <order attribute="name" descending="false" />
    <filter type="and">
      <condition attribute="savedqueryid" operator="eq" uiname="Active Accounts" uitype="savedquery" value="{00000000-0000-0000-00AA-000010001002}" />
    </filter>
  </entity>
</fetch>

Let’s use this in setDefaultView() and use in Form. I am setting this to Parent Account of Account Main Form onLoad event. Add below code to JS web resource and Add to Form.

function formOnLoad(){
Xrm.Page.getControl("parentaccountid").setDefaultView("{00000000-0000-0000-00AA-000010001002}");
}

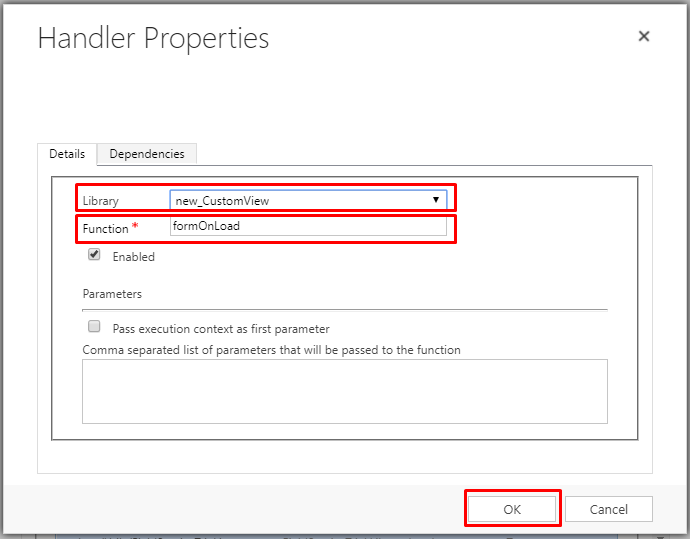

Attach function to Form OnLoad event, Then Save & Publish it.

image alt text

Now go back to Account Form, refresh it to Load JavaScript, and in Parent Account click Look Up More Records.

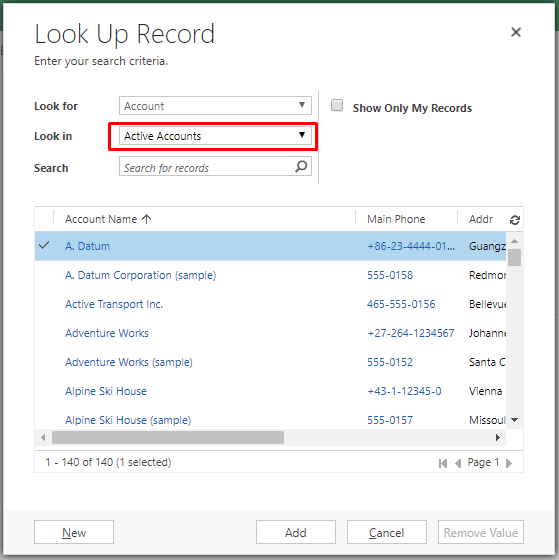

Congrats! Your default Lookup View is Active Accounts now.

image alt text

Let’s make it more generic and useful by retrieving View Id from name with WebApi Ajax call.

I’m creating new generic function with name setLookupViewByName() replace your web resource content with below given code, save and publish it.

function formOnLoad() {
    setLookupViewByName("parentaccountid", "Customers", true);
}

function setLookupViewByName(fieldName, viewName, asynchronous) {
    var req = new XMLHttpRequest();
    req.open("GET", Xrm.Page.context.getClientUrl() + "/api/data/v8.2/savedqueries?$select=savedqueryid&$filter=name eq '" + viewName + "'", asynchronous);
    req.setRequestHeader("OData-MaxVersion", "4.0");
    req.setRequestHeader("OData-Version", "4.0");
    req.setRequestHeader("Accept", "application/json");
    req.setRequestHeader("Content-Type", "application/json; charset=utf-8");
    req.setRequestHeader("Prefer", "odata.include-annotations=\"*\"");
    req.onreadystatechange = function () {
        if (this.readyState === 4) {
            req.onreadystatechange = null;
            if (this.status === 200) {
                var results = JSON.parse(this.response);
                if (results.value.length > 0) {
                    var savedqueryid = results.value[0]["savedqueryid"];
                    Xrm.Page.getControl(fieldName).setDefaultView(savedqueryid);
                } else {
                    Xrm.Utility.alertDialog(viewName + " view is not available.");
                }
            } else {
                Xrm.Utility.alertDialog(this.statusText);
            }
        }
    };
    req.send();
}

Find Gist here https://gist.github.com/AshV/90aa2dc8f2733384306b5f5dcfbbf95b

image alt text

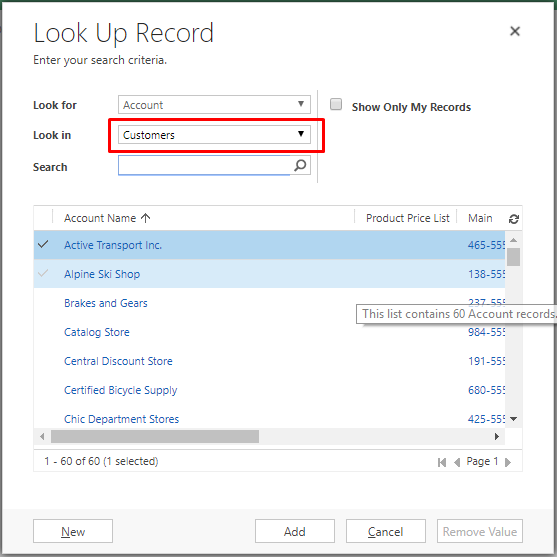

I have given Customers as view name, so it is coming as default view. See in screenshot.

Hope it is helpful. Cheers!
